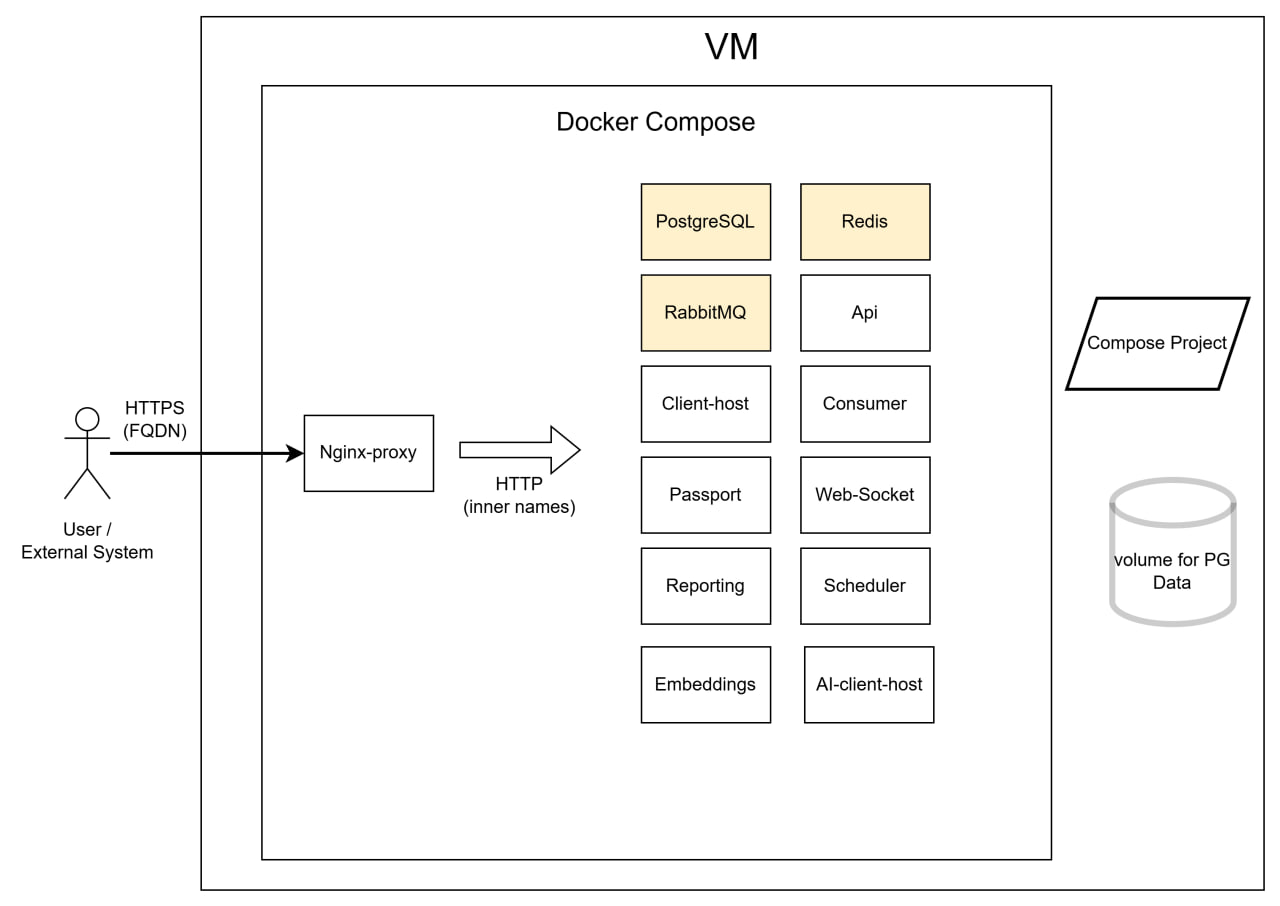

Настройка проекта Docker Compose

/opt/timetta
   /proxy
      /nginx.conf => конфигурация proxy
      /ssl
         /cert.pem => открытый ключ
         /key.pem => закрытый ключ
   /certificate.pfx => сертификат для OAuth (подпись токенов)
   /client-settings.json => настройки клиентской части
   /compose.yml => конфигурация Docker Compose
   /key.json => авторизованный ключ для доступа к реестру образов Timetta
   /nginx.conf => конфигурация клиентской части
   /settings.json => настройки сервисов
   /.env => параметры проекта

sudo mkdir -p /opt/timetta
sudo chown -R $USER:$USER /opt/timetta  # Даём права своему пользователю
cd /opt/timetta

BACKEND_IMAGE_TAG=latest
FRONTEND_IMAGE_TAG=latest

user nginx;
worker_processes  1;
events{}
http {
  include /etc/nginx/mime.types;
  server {
    listen [::]:80 http2;
    listen 80 http2;
    root /usr/share/nginx/html;
    index index.html;
    location / {
      try_files $uri $uri/ /index.html =404;
    }
  }
}

worker_processes auto;

events {
    worker_connections 1024;
}

http {

    # Основной параметр для больших файлов
    client_max_body_size 100M;

    # Буферизация и таймауты
    client_body_buffer_size 128k;
    client_body_timeout 300s;

    # Лимиты заголовков и URI
    client_header_buffer_size 32k;
    large_client_header_buffers 16 128k;

    # Для proxy
    proxy_read_timeout 300s;
    proxy_connect_timeout 300s;
    proxy_send_timeout 300s;

    map $http_upgrade $connection_upgrade {
        default upgrade;
        ''      close;
    }
    ssl_protocols TLSv1.2;
    ssl_prefer_server_ciphers on;

    ssl_certificate /etc/nginx/ssl/cert.pem;
    ssl_certificate_key /etc/nginx/ssl/key.pem;

    proxy_set_header Authorization $http_authorization;
    proxy_pass_request_headers on;
    proxy_set_header Host $host:$server_port;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Host $host:$server_port;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_set_header X-Forwarded-Port $server_port;


    server {
        listen 443 ssl;
        server_name _;
        location / {
            proxy_pass http://client;
        }
    }

    server {
        listen 5400 ssl;
        server_name _;
        location / {
            proxy_pass http://api;
        }
    }

    server {
        listen 5401 ssl;
        server_name _;
        location / {
            proxy_pass http://passport;
        }
    }

    server {
        listen 5404 ssl;
        server_name _;
        location / {
            proxy_pass http://web-socket;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection $connection_upgrade;
        }
    }

    server {
        listen 5405 ssl;
        server_name _;
        location / {
            proxy_pass http://reporting;
        }
    }

    server {
        listen 5406 ssl;
        server_name _;
        location / {
            proxy_pass http://scheduler;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection $connection_upgrade;
        }
    }
}

name: timetta

# Общие настройки
x-common-logging: &app-config
  logging:
    driver: "json-file"
    options:
      max-size: "10m"
      max-file: "3"
  depends_on:
    postgres:
      condition: service_healthy
    redis:
      condition: service_healthy
    rabbitmq:
      condition: service_healthy
  environment:
    - ASPNETCORE_URLS=http://*:80
    - ASPNETCORE_ENVIRONMENT=Production

configs:
  app_settings:
    file: ./settings.json
  client_settings:
    file: ./client-settings.json
  nginx_config:
    file: ./nginx.conf
  certificate_pfx:
    file: ./certificate.pfx
  proxy_config:
    file: ./proxy/nginx.conf
  proxy_cert:
    file: ./proxy/ssl/cert.pem
  proxy_key:
    file: ./proxy/ssl/key.pem

# Data storage.
volumes:
  pgdata:
    driver: local

services:
  postgres:
    image: postgres:17
    container_name: postgres
    environment:
      POSTGRES_USER: dba
      POSTGRES_PASSWORD: 1
      PGDATA: /var/lib/postgresql/data/pgdata
    ports:
      - "5430:5432"
    volumes:
      - ./pgdata:/var/lib/postgresql/data/pgdata
    deploy:
      resources:
        limits:
          cpus: "1"
          memory: 4G
        reservations:
          cpus: "0.5"
          memory: 1024M
    command: >+
      postgres -c max_connections=1000
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U postgres_user -d postgres_db"]
      interval: 10s
      timeout: 10s
      retries: 10
    restart: always
    tty: true
    stdin_open: true

  redis:
    image: redis:8.2.1
    container_name: redis
    restart: always
    volumes:
      - /path/to/local/dаta:/root/redis
      - /path/to/local/redis.conf:/usr/local/etc/redis/redis.conf
    environment:
      - REDIS_PASSWORD=1
      - REDIS_PORT=6379
      - REDIS_DATABASES=16
    healthcheck:
      test:
        [
          "CMD",
          "redis-cli",
          "-a",
          "$$REDIS_PASSWORD",
          "--no-auth-warning",
          "ping",
        ]
      interval: 10s
      timeout: 3s
      retries: 3
      start_period: 10s

  rabbitmq:
    container_name: rabbitmq
    image: rabbitmq:4.1.4
    restart: always
    environment:
      - RABBITMQ_DEFAULT_USER=admin
      - RABBITMQ_DEFAULT_PASS=1
    healthcheck:
      test: rabbitmq-diagnostics -q ping
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 40s

  api:
    container_name: api
    restart: always
    image: cr.yandex/crpr8bvek949tq2fuqkf/api:${BACKEND_IMAGE_TAG}
    <<: *app-config
    deploy:
      resources:
        limits:
          cpus: "1"
          memory: 4G
        reservations:
          cpus: "0.5"
          memory: 2G
    configs:
      - source: app_settings
        target: /app/secrets/settings.json

  passport:
    container_name: passport
    image: cr.yandex/crpr8bvek949tq2fuqkf/passport:${BACKEND_IMAGE_TAG}
    <<: *app-config
    configs:
      - source: app_settings
        target: /app/secrets/settings.json
      - source: certificate_pfx
        target: /app/secrets/certificate.pfx

  consumer:
    container_name: consumer
    image: cr.yandex/crpr8bvek949tq2fuqkf/consumer:${BACKEND_IMAGE_TAG}
    <<: *app-config
    configs:
      - source: app_settings
        target: /app/secrets/settings.json

  scheduler:
    container_name: scheduler
    image: cr.yandex/crpr8bvek949tq2fuqkf/scheduler:${BACKEND_IMAGE_TAG}
    <<: *app-config
    configs:
      - source: app_settings
        target: /app/secrets/settings.json

  web-socket:
    container_name: web-socket
    image: cr.yandex/crpr8bvek949tq2fuqkf/web-socket-hub:${BACKEND_IMAGE_TAG}
    <<: *app-config
    configs:
      - source: app_settings
        target: /app/secrets/settings.json

  reporting:
    container_name: reporting
    image: cr.yandex/crpr8bvek949tq2fuqkf/reporting:${BACKEND_IMAGE_TAG}
    <<: *app-config
    configs:
      - source: app_settings
        target: /app/secrets/settings.json

  client:
    container_name: client
    image: cr.yandex/crpr8bvek949tq2fuqkf/client-host:${FRONTEND_IMAGE_TAG}
    deploy:
      update_config:
        parallelism: 1
        delay: 0s
        order: stop-first
    configs:
      - source: nginx_config
        target: /etc/nginx/nginx.conf
      - source: client_settings
        target: /usr/share/nginx/html/assets/config.json

  nginx-proxy:
    container_name: nginx-proxy
    image: nginx
    ports:
      - "5400:5400"
      - "5401:5401"
      - "5404:5404"
      - "5405:5405"
      - "5406:5406"
      - "443:443"
      - "80:80"
    configs:
      - source: proxy_config
        target: /etc/nginx/nginx.conf
      - source: proxy_cert
        target: /etc/nginx/ssl/cert.pem
      - source: proxy_key
        target: /etc/nginx/ssl/key.pem
    depends_on:
      - api
      - consumer
      - passport
      - web-socket
      - scheduler
      - client

docker compose up -d --force-recreate
